Platforma 2060

 The 2060 XRF Process Analyzer is a non-destructive online process analyzer employing Energy-Dispersive X-ray Fluorescence (EDXRF) technology. This analyzer ensures precise and nearly real-time monitoring of liquid sample streams within industrial processes.With the capacity to connect up to 20 sampling points, the 2060 XRF Process Analyzer facilitates seamless online XRF analysis. As part of the 2060 Platform, it seamlessly integrates multiple analysis techniques into one unified platform. Experience the power of combining XRF with titration or photometry for comprehensive process insights like never before.

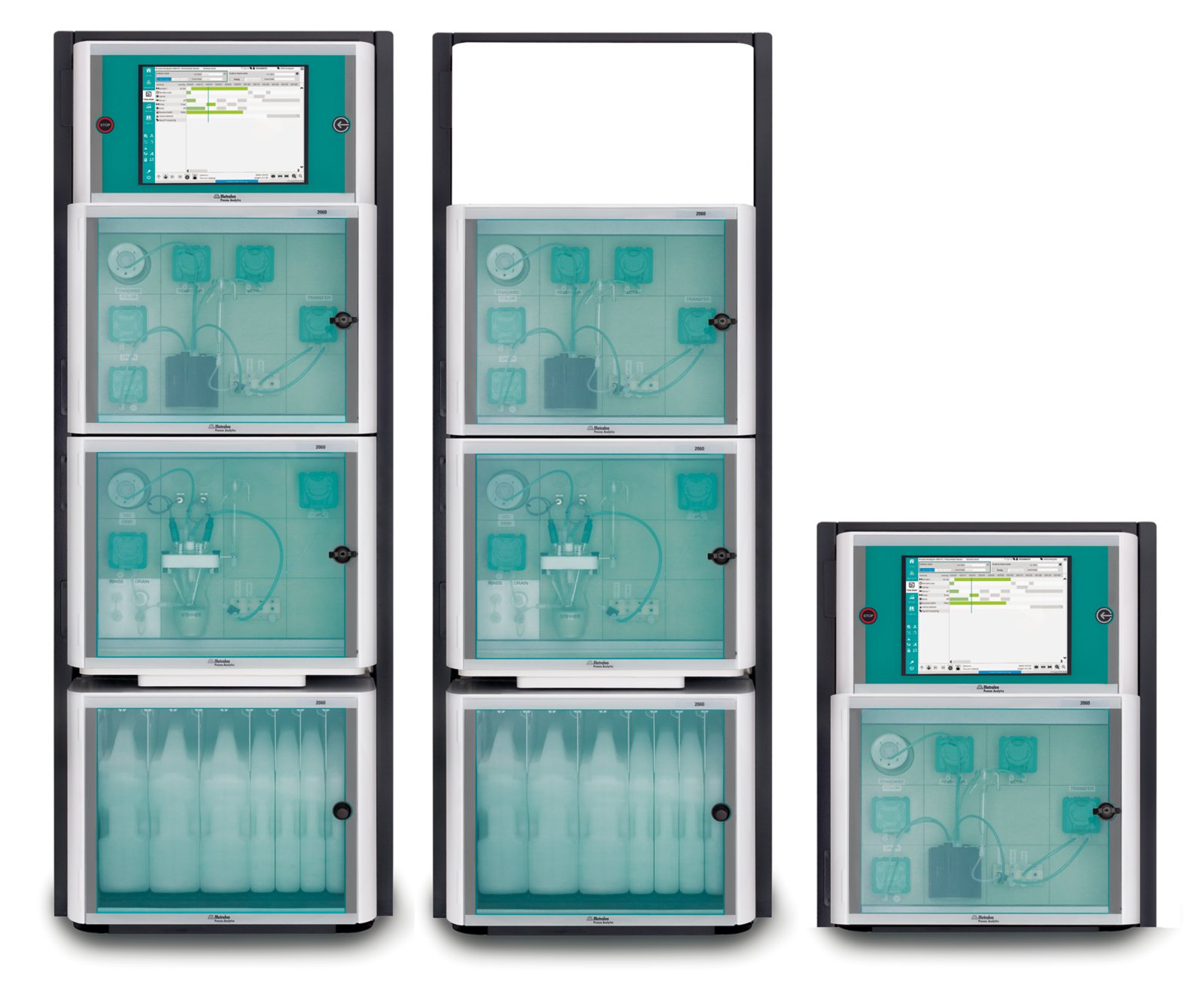

The 2060 Ion Chromatograph (IC) Process Analyzer from Metrohm Process Analytics is based on the modular 2060 platform concept. This modular architecture enables the separation of the cabinets in different locations around a plant and the connection to up to 20 sample streams for time-saving sequential analysis at multiple areas inside of a plant.This analyzer has no limits in terms of hardware, software, and applications customization. From continuous eluent production module, wet part modules for sample conditioning, and multiple IC detector blocks, the 2060 IC Process Analyzer has all the options for any industrial application.The 2060 software is an «all-in-one» software solution that controls the analyzer to perform routine analysis, with different operation methods, time sheets, and trend charts. Furthermore, thanks to the variety of process communication protocols (e.g. Modbus or Discrete I/O), the 2060 software is programmable to send automatic feedback and alarms to the process and take action if necessary (e.g., re-measure a sample, or start a cleaning cycle). All of these features ensure fully automatic diagnostics of the industrial process – around the clock, seven days a week.

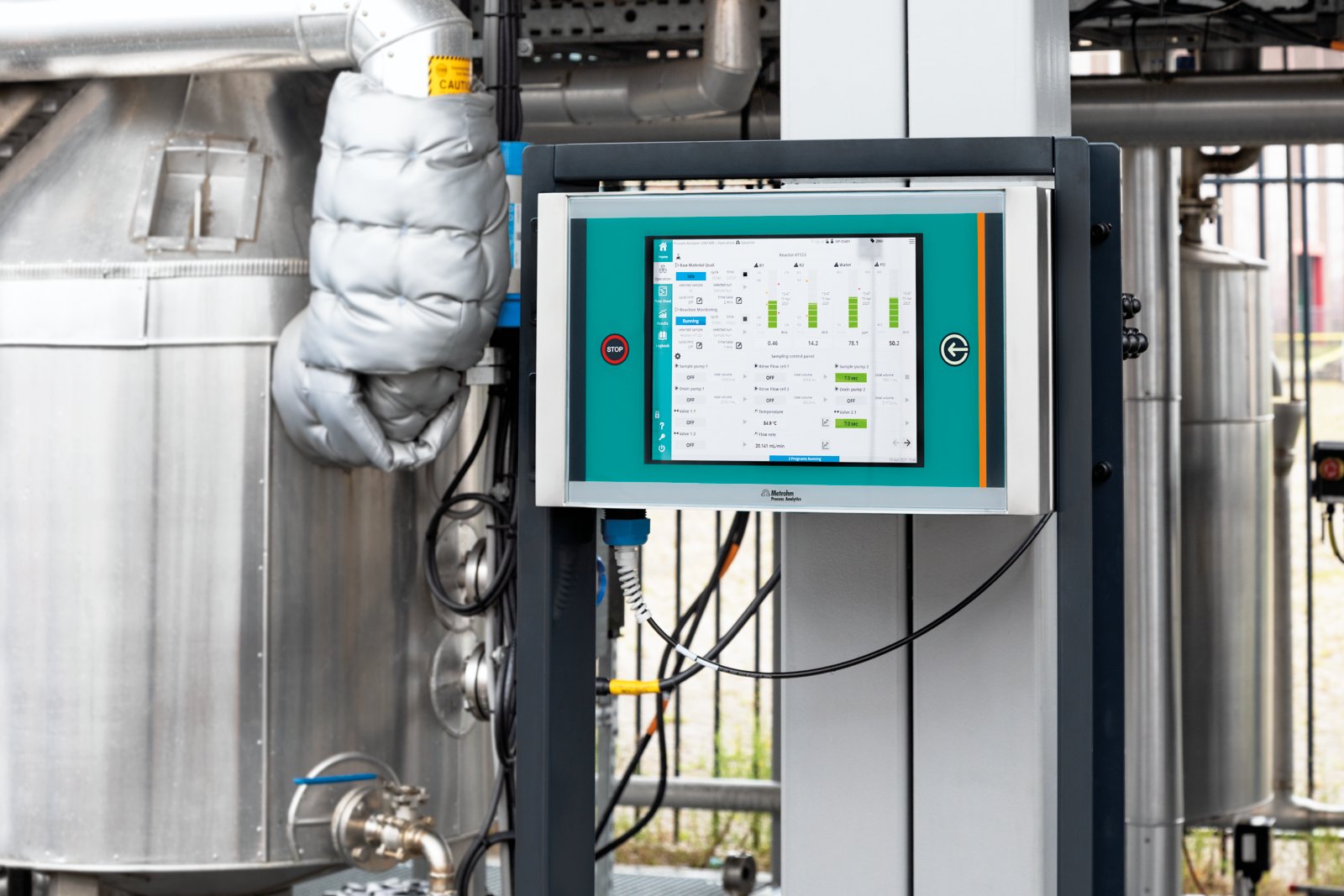

The 2060 Human Interface (HI) is a reliable industrial process controller with a rugged enclosure and high-definition touch screen. Designed with IP65 protection in mind, this process controller is perfect for all industries, especially in harsh environments.The 2060 HI is part of the 2060 process platform, which means that it is highly versatile and flexible in accordance to Metrohm Process Analytics design philosophy. With that concept in mind, the 2060 HI is designed to be connected to our family of process spectrometers (Near infrared and Raman) and to wet chemistry analyzers (titration and ion chromatography) to tackle any industrial challenge.The 2060 software integrated in this process controller is an «all-in-one» software solution that controls process analyzers to perform routine analysis, with different operation methods, time sheets, and trend charts. Furthermore, thanks to the variety of process communication protocols (e.g. Modbus or Discrete I/O), the 2060 software is programmable to send automatic feedback and alarms to the process and take corrective action if necessary (e.g., re-measure a sample, validation standard or start a cleaning cycle). All of these features ensure fully automatic and smart diagnostics of the industrial process – around the clock, seven days a week

The 2060 The NIR-R Analyzer is the next generation of process spectroscopy instruments from Metrohm Process Analytics. With its unique and proven design from the inside out, it delivers accurate results every 10 seconds. It can provide non-destructive analysis of liquids and solids directly in the process line or in a reaction vessel by using fiber optics and contact probes. It has been designed to connect up to five (5) probes and/or flow-cells. All five channels can be configured independently from each other using our versatile embedded proprietary software.As part of the 2060 Platform, the 2060 The NIR-R Analyzer enables the unique separation of the human interface (HI) and NIR cabinet by optical fibers. This remote configuration allows the placement of both cabinets at different locations around the plant depending on customer preference and area classifications. Besides, it is available in three other versions: the 2060 The NIR Analyzer, 2060 The NIR-Ex Analyzer, and 2060 The NIR-REx Analyzer.

The 2060 The NIR Analyzer is the next generation of process spectroscopy instruments from Metrohm Process Analytics. With its unique and proven design from the inside out, it delivers accurate results every 10 seconds. It can provide non-destructive analysis of liquids and solids directly in the process line or in a reaction vessel by using fiber optics and contact probes. It has been designed to connect up to five (5) probes and/or flow-cells. All five channels can be configured independently from each other using our versatile embedded proprietary software.As part of the 2060 Platform, the 2060 The NIR Analyzer has a modular concept and it is available in three other versions: the 2060 The NIR-R Analyzer,2060 The NIR-Ex Analyzer, and 2060 The NIR-REx Analyzer.

The 2060 The NIR-Ex Analyzer is the next generation of process spectroscopy instruments from Metrohm Process Analytics. With its unique and proven design from the inside out, it delivers accurate results every 10 seconds. It can provide non-destructive analysis of liquids and solids directly in the process line or in a reaction vessel by using fiber optics and contact probes. It has been designed to connect up to five (5) probes and/or flow-cells. All five channels can be configured independently from each other using our versatile embedded proprietary software.Additionally, this analyzer is IECEx certified and fulfills the ATEX EU Directives. It has been designed with an approved purge/pressurization system together with intrinsically electronic devices, preventing any potentially explosive fumes or gases from the ambient air entering the analyzer enclosure. Furthermore, it is available in three other versions: the 2060 The NIR Analyzer, 2060 The NIR-R Analyzer, and 2060 The NIR-REx Analyzer.

The 2060 The NIR-REx Analyzer is the next generation of process spectroscopy instruments from Metrohm Process Analytics. With its unique and proven design from the inside out, it delivers accurate results every 10 seconds. It can provide non-destructive analysis of liquids and solids directly in the process line or in a reaction vessel by using fiber optics and contact probes. It has been designed to connect up to five (5) probes and/or flow-cells. All five channels can be configured independently from each using our versatile embedded proprietary software.As part of the 2060 Platform, the 2060 The NIR-REx Analyzer enables the unique separation of the human interface (HI) and NIR cabinet by optical fibers. This remote configuration allows the placement of both cabinets at different locations around the plant depending on customer preference and area classifications.Additionally, this analyzer is IECEx certified and fulfills the ATEX EU Directives. It has been designed with an approved purge/pressurization system together with intrinsically electronic devices, preventing any potentially explosive fumes or gases from the ambient air entering the analyzer enclosure. Furthermore, it is available in three other versions: the 2060 The NIR Analyzer, 2060 The NIR-R Analyzer, and 2060 The NIR-Ex Analyzer.

 The 2060 Raman Analyzer is a non-destructive inline process analyzer that implements Raman spectroscopy to deliver accurate and real-time process monitoring. Thanks to its self-monitoring capabilities, high-throughput spectrometer, and long-lasting laser stability, it provides immediate insights into chemical composition and enables timely adjustments for optimal process control, ensuring consistent product quality, and enhancing overall operational efficiency.Up to 5 probes and/or flow cells can be connected to the analyzer. All 5 channels can be configured independently from each other in the embedded proprietary software.

2060 RISE is a 785nm inline Raman spectrometer designed for rapid, non-destructive analysis of various materials, including incoming raw materials, pharmaceutical APIs, and impurities. Its CMOS detector reduces noise and the need for cooling, while improving sensitivity, allowing detection of sensitive Raman signals.2060 RISE is available in various configurations to suit different needs: the 2060 RISE for standard applications, the 2060 RISE-HT for high-temperature environments, the 2060 RISE-Ex for hazardous areas, and the 2060 RISE-Ex-HT for applications in both extreme heat and hazardous conditions.

2060 RISE-HT is a rugged, high-temperature inline Raman spectrometer designed to withstand harsh industrial environments. With its advanced vortex cooling system, it can operate reliably in temperatures up to 150°C, making it ideal for applications in chemical processing, petrochemical, and pharmaceutical industries. Like its standard version, the 2060 RISE-HT powers a 785nm laser and a high-sensitivity CMOS detector to deliver rapid, non-destructive analysis of various materials.

2060 RISE-Ex is a compact, explosion-proof inline Raman spectrometer designed for use in hazardous areas. Its unique purge system, located outside the sensor, maintains a safe atmosphere within the device while preserving its small footprint.Ideal for industries like oil and gas, petrochemical, and pharmaceutical, the 2060 RISE-Ex provides reliable and accurate analysis in even the most challenging environments.

2060 RISE-HT-Ex is an innovative, explosion-proof inline Raman spectrometer designed to operate in both hazardous and high-temperature environments. Combining the rugged construction of the 2060 RISE-HT with the safety features of the 2060 RISE-Ex, this powerful analyzer is ideal for challenging industrial applications.Equipped with an advanced cooling system, the 2060 RISE-HT-Ex can withstand temperatures up to 150°C, making it suitable for harsh conditions in refineries, petrochemical plants, and other high-temperature industrial settings. Its robust design and independent sensor architecture ensure continuous monitoring and minimal downtime, even in the most demanding environments.
